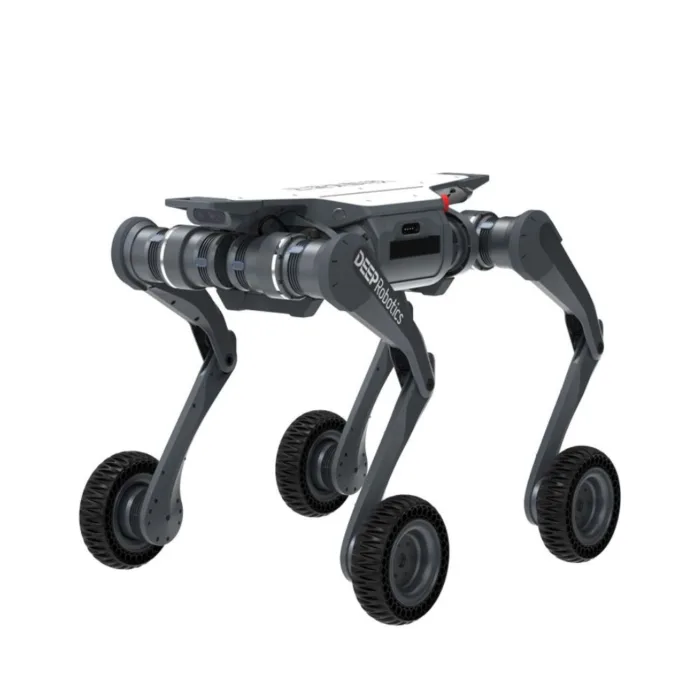

DEEP Robotics Lynx M20
- World’s first wheeled-legged industrial robot built for extreme terrains
- Combines wheeled speed with legged agility for rugged operations
- Handles mud, mountains, tunnels, rubble, and wetlands with ease
- Supports 15kg payload, 80cm obstacle clearance, and 25cm stair climbing
- Equipped with 96-line LiDAR, dual wide-angle cameras, and omnidirectional obstacle avoidance
- IP66-rated with operating range from -20°C to 55°C for all-weather reliability
- Hot-swappable batteries with up to 3h endurance / 15km range
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
Lighter, Faster, Smarter
The Industry-Grade Wheel-Legged Robot

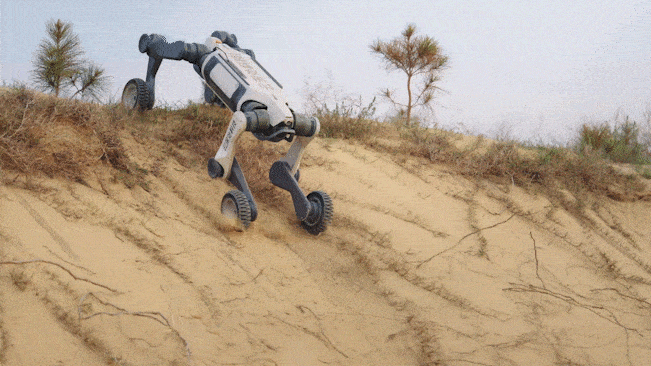

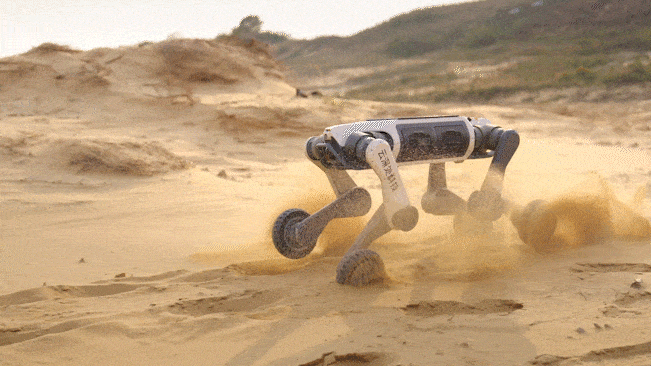

Omni-Terrain Mastery
Adapts to Extreme Environments
Compact & Adaptive
Expands Application Horizons
Hardcore Protection
Extreme Environment Ready
High-Performance Configurations
For Diverse Demands
Product specification
General Parameters
- Standing Dimensions 820mm×430mm × 570mm
- Weight (Incl. Battery) 33kg
- Payload Capacity 15kg
- Max. Load Capacity 50kg
- Unloaded Endurance/Range 3h/15km
- Loaded Endurance/Range (15kg) 2.5h/12km
- Charging Time (Single Battery) 1.5h
Mobility Performance
- Lab-Tested Max. Speed 5m/s
- Operating Max. Speed 2m/s

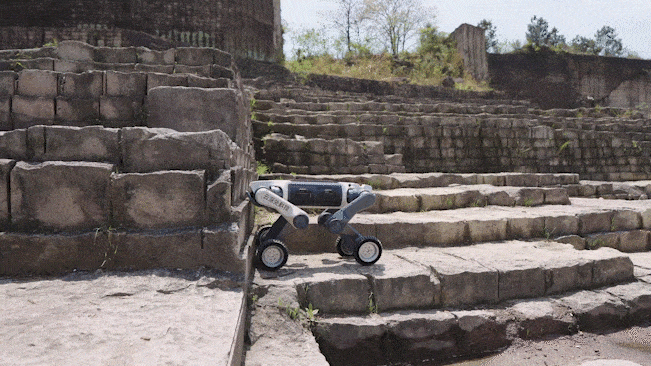

- Max. Continuous Stair Height 25cm
- Max. Single-Step Height 80cm
- Max. Slope 45°
Hardware Configuration
- Computing Power
Dual octa-core 64-bit industrial processors (16GB+128GB)×2LiDAR ×2
（96line，360°×90°，~860000pts/s）Wide-Angle Cameras ×2
Environmental Adaptability
- Protection Rating IP66
- Operating Temperature -20℃~55℃
Functional Features
- Omnidirectional obstacle avoidance
- Point cloud surround view
- Front/rear bidirectional lighting
- RF image transmission
- OTA upgrades
External Interfaces
- Electrical Ports
72V power input, Gigabit Ethernet
