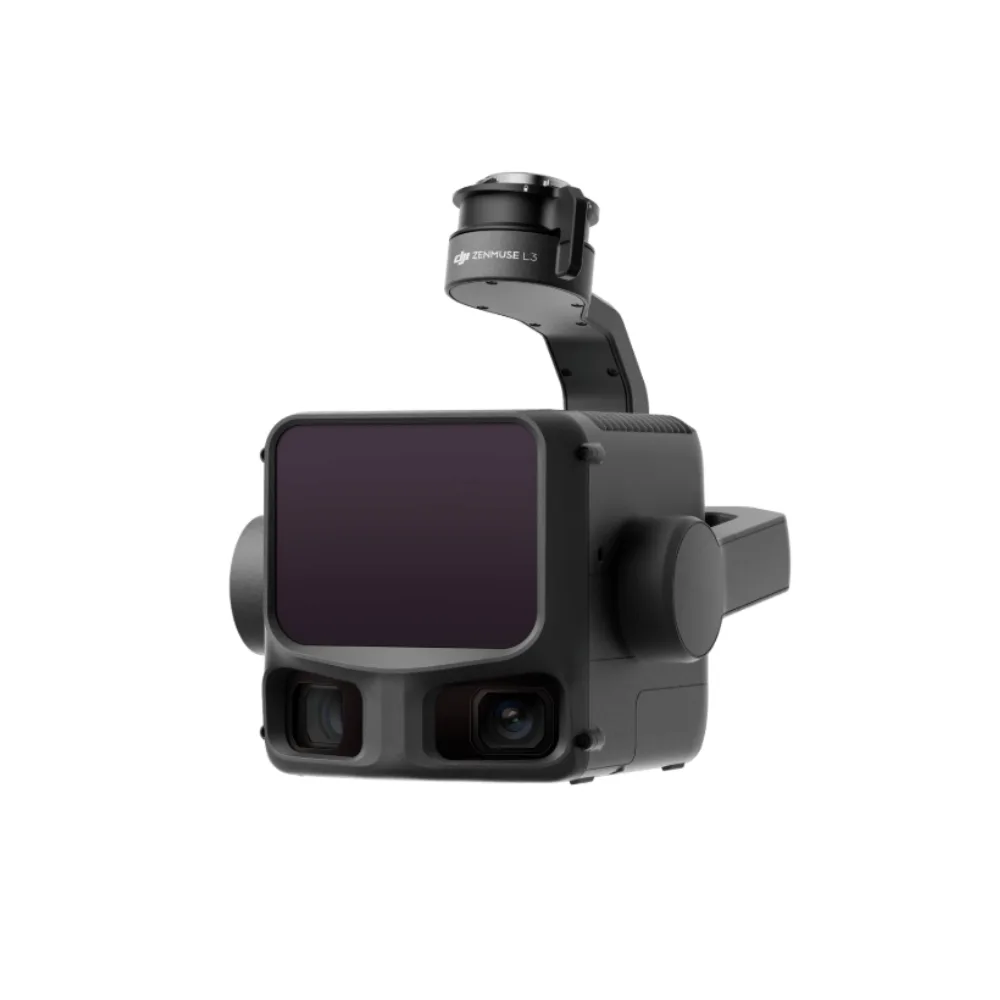

DJI Zenmuse L3- See Through, Far and True
₹1,300,000.00
Experience next-level aerial precision with the DJI Zenmuse L3 LiDAR Sensor — designed for unmatched efficiency in mapping, surveying, and 3D modeling.
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
TRUSS METAL FRAME
The D100 delivery drone from Effort Tech (EFT) features an industrial-grade metal truss frame designed for heavy-load reliability.
DJI's next-generation high-accuracy aerial LiDAR system features a long-range LiDAR capable of reaching up to 950 m even on objects with just 10% reflectivity. Dual 100MP RGB mapping cameras and a high-precision POS system accelerate geospatial data acquisition, enabling daily coverage of up to 100 km².
System Specifications
Point Cloud System Accuracy
At 120m Flight Altitude:
Vertical Accuracy: 3 cm (RMSE)
Horizontal Accuracy: 4 cm (RMSE)
At 300m Flight Altitude:
Vertical Accuracy 5 cm (RMSE)
Horizontal Accuracy: 7.5 cm (RMSE)
Point Cloud Thickness
1.2 cm@1σ (120m nadir flight altitude)
2 cm@1σ (300m nadir flight altitude)
RGB Ground Sampling Distance (GSD)
Average Value: 3 cm (300m nadir flight altitude)
Supported Aircraft
DJI Matrice 400 (requires the Zenmuse L3 single gimbal connector)
Storage Temperature
-40° to 70° C (-40° to 158° F)
Point Cloud Thickness
1.2 cm@1σ (120m nadir flight altitude)
2 cm@1σ (300m nadir flight altitude)
Combined Horizontal FOV (Dual RGB Mapping Cameras)
107°
Power
64 W (typical)
100 W (max)
Weight
1.60 kg (without single gimbal connector)
Dimensions
192×162×202 mm (L×W×H)
Ingress Protection Rating
IP54
Operating Temperature
-20° to 50° C (-4° to 122° F)
LIDAR
Laser Wavelength
1535 nm
Laser Spot Size
Φ 41 mm@120 m (1/e²)
Φ 86 mm@300 m (1/e²)
Wire Detection Range
21.6mm Steel Core Aluminum Stranded Wire:
300 m@100 klx, 350 kHz
18.4mm Black PVC Insulated Wire:
100 m@100 klx, 350 kHz
Minimum Effective Detection Distance
10 m
Number of Returns
4, 8, 16 returns (100 kHz, 350 kHz)
4, 8 returns (1000 kHz)
4 returns (2000 kHz)
Scanning Mode and FOV
Linear Scanning Mode: Horizontal 80°, vertical 3°
Star-Shaped Scanning Mode: Horizontal 80°, vertical 80°
Non-Repetitive Scanning Mode: Horizontal 80°, vertical 80°
Laser Beam Divergence
0.25 mrad (1/e²)
Detection Range
700 m@10% reflectivity, 350 kHz
950 m@10% reflectivity, 100 kHz
2000 m@80% reflectivity, 100 kHz
Ranging Accuracy
Absolute Accuracy: ±10 mm
Repeatability: < 5 mm (1σ)
Laser Pulse Emission Frequency
100 kHz, recommended flight altitude < 500 m
350 kHz, recommended flight altitude < 300 m
1000 kHz, recommended flight altitude < 100 m
2000 kHz, recommended flight altitude < 50 m
Cross-Cycle Calculation
Cross-Cycle Calculation
Laser Safety Classification
Class 1 (IEC 60825-1:2014)
