Foxtech AYK-250 is a long-endurance tail-pushed VTOL with high efficiency specifically designed for long-range inspection, surveillance and mapping jobs.
Foxtech AYK-250 adopts carbon fiber integrated molding process, which makes the whole body light and durable, the aerodynamic design and smooth surface ensure a low air resistance.
The quick-detach design on both fuselage and cable connector makes it easy to assembly the drone in a short time. In particular, the detachable tail design has the advantages of reducing the volume and convenient transportation. The detachable payload compartment is also convenient for loading different task equipment.
There is a DGPS version of AYK-250 that adopts dual GPS modules, providing GPS for yaw, higher locating accuracy, and eliminating compass calibration. DGPS version also supports propeller-direction-auto-lock function that fixes in the air in fixed-wing mode to reduce wind resistance.
With long duration and stable flight performance AYK-250 VTOL can be applied in inspection and surveillance,mapping and survey by loading different gimbal cameras or mapping cameras, such as Foxtech 10x/30x zoom cameras, 3DM-V3, Argus V2 oblique camera and MS600 multispectral camera etc.
In mapping combo AYK-250 VTOL is equipped with Foxtech MS600 multispectral camera and DA16S+ radio controller featuring 8km rc/data transmission range, which can be used for crop condition and water quality monitoring, resource investigation etc.
AYK-250 VTOL equipped with SEEKER-30 TR 30X zoom camera and T30S dual-screen ground control station featuring 15km rc/data/video transmission range can be used for long range inspection like public security, border defense and energy industries.
Specification:
Version: AYK-250
Type: VTOL
Color: Grey

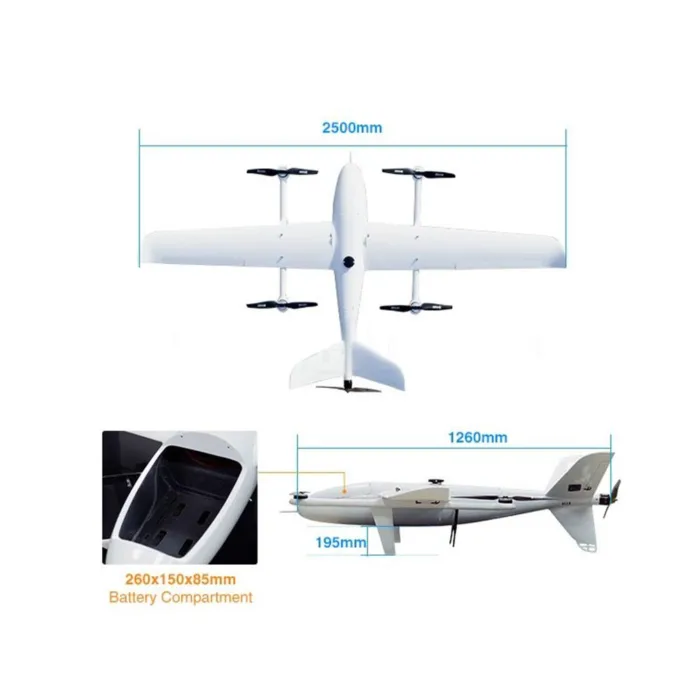

Wingspan: 2500 mm
Length: 1260 mm
Material: Carbon Fiber
Frame weight: 3.8 kg
Basic empty weight: 7 kg (no battery)
Max. take-off weight: 0~3000 m@15 kg
Max cruising speed: 26 m/s@12.5 kg
Stall speed:15.5 m/s@12.5 kg
Max flight altitude:4800 m(Max.)
Wind Resistance: 10.8 m/s-13.8 m/s(fixedwing); 5.5 m/s-7.9 m/s(vtol)
Working voltage: 12S
Working temperature: -20℃~45℃；
Carrying case: 1300*530*470 mm
Your Purchase Includes:

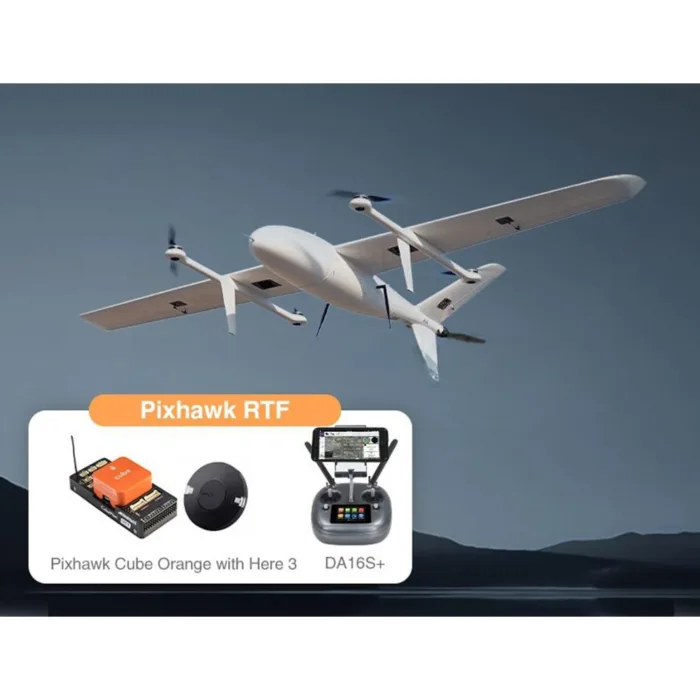

Pixhawk RTF:
1x AYK-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service
X7+ Pro RTF:
1x AYK-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x X7+ Pro Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service
V5+ RTF:
1x AYK-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x V5+Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service
Agriculture Combo:
1x AYK-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x 25A BEC
1x Air Speedometer
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x MS600 Multispectral Camera
1x Carrying Case
1x Assembling,tuned and Flying Test Service
Inspection Combo:
1x AYK-250 VTOL Frame
4x VTOL Motor KV260
4x VTOL ESC 60A
1x Motor KV230 for Fixedwing Mode
1x ESC 115A HV for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x 25A BEC
1x Air Speedometer
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x T30S Dual-Screen Ground Control Station
1x FOXTECH SEEKER-30 TR 30X Optical Zoom Camera with 3-axis Gimbal
1x Carrying Case
1x Assembling,tuned and Flying Test Service
Options
1x Diamond 12S 32000mAh HV
1x Ultra Power Duo 1200W Balance Charger
