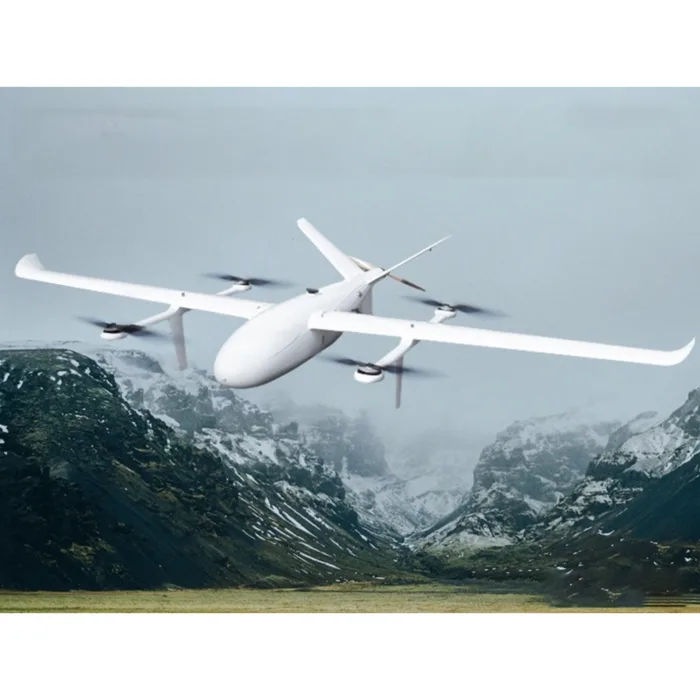

FOXTECH AYK-350 Heavy Load VTOL
₹1,735,350.00 – ₹2,116,350.00
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deals with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout

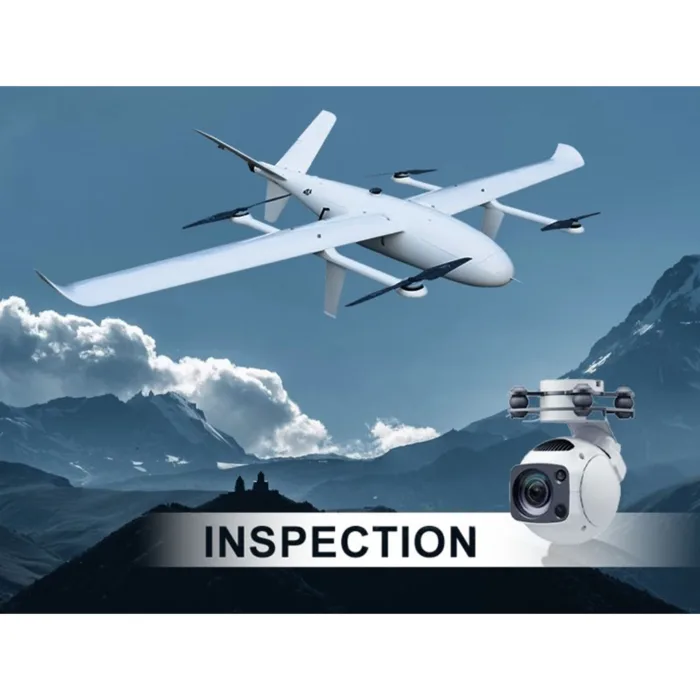

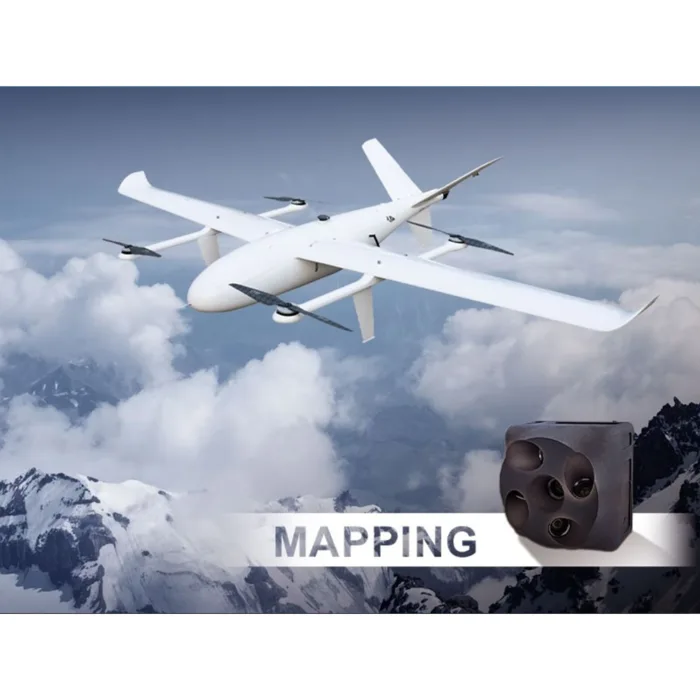

AYK-350 is a heavy load VTOL, which can be used for cargo delivery or load heavy gimbal/mapping/multispectral cameras for inspection and survey jobs.
-Dual GPS Differential Design
AYK-350 Pro has three reserved GPS positions, so it can be equipped with dual GPS (DGPS) to improve positioning accuracy, anti-interference ability and flight stability; No need for compass calibration.
-Quick-mount Design
The whole body of AYK-350 VTOL adopts quick-detach design, including the wings, arms and tail part, ensuring a short assembly time and small packing size. The detachable payload cabin is also convenient for loading different task equipment.
-Latest DLVR Airspeed Measurement System
Adopting the latest DLVR air speedometer, which features high precision and low-temperature drift, greatly improves the aircraft’s reliability.
-Manned/Unmanned Cargo Pickup
ModeⅠ(Unmanned): A. with the pre-set program, AYK-350 will carry the package to the destination; B. drop the package after descending to the desirable height; C. return.
ModeⅡ(Unmanned): A. carry the package to the destination; B. land and disarm; C. drop the cargo; D. automatically take off after 10s (the time can be set).
Specification:
Version: AYK-350
Type: VTOL
Color: White
Wingspan: 3500 mm
Length: 1880 mm
Material: Carbon Fiber
Basic Empty Weight: 18.2 kg (no battery)
Max Takeoff Weight: 35 kg
Suggested Cruising Speed: 22 m/s
Max Cruising Speed: 28 m/s
Stall Speed: 17 m/s
Max Flight Altitude: 3000 m
Max Takeoff Altitude: 2000 m
Wind Resistance: 10.8 m/s-13.8 m/s (fixedwing); 5.5 m/s-7.9 m/s (vtol)
Working Voltage: 48 V
Working Temperature: -20℃~45℃
Carrying Case: 1670*590*540 mm
Your Purchase Includes:
RTF Combo (Pixhawk / X7 Pro):
1x AYK-350 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
1x 24 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
(or X7 Pro Flight Controller with NEO 3 Pro GNSS)
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Cargo Delivery Combo:
1x AYK-350 VTOL
1x Cargo Delivery Cabin
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
1x 24 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set (or X7 Pro Flight Controller)
2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
1x DA16S+ Radio Controller
1x 100m Single Point Lidar
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Dual GPS Combo:
1x AYK-350 VTOL
1x High Efficiency Tail Motor
1x Tail ESC
1x 24 inch Propeller for Tail Motor
1x 24 inch Spare Propeller for Tail Motor(for free)
4x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 26 inch Propellers for VTOL Mode
1x (pair) 26 inch Spare Propellers for VTOL Mode(for free)|
2x UBEC
2x Power Monitor Module
1x Pixhawk Cube Orange Standard Set (or X7 Pro Flight Controller)
2x C-RTK 9Ps High Precision Positioning Module Pixhawk Sky End
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Option:
1x Diamond 12S 66000mAh HV
| VTOL Version |
Cargo Delivery (Pixhawk) ,Cargo Delivery (X7+ Pro) ,Dual GPS Combo-CUAV X7+ Pro ,Dual GPS Combo-Pixhawk ,Pixhawk RTF |
|---|
