IdeaForge Netra

5,192,000.00 Incl. GST. Claimable with B2B Billing.

Specifications:

Typical Cruise Speed: 10 m/s
Propulsion: Battery-powered electric propulsion
Maximum Operating Altitude (AGL): 500m AGL
Maximum Launch Altitude (AMSL): 6000m AMSL

And many more…

Guaranteed Safe Checkout

Description

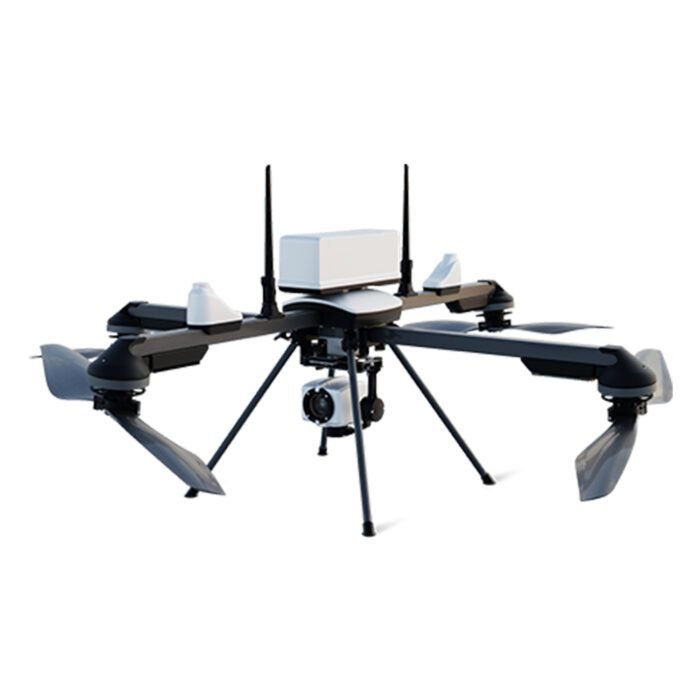

Exploring The IdeaForge Netra UAV V4+: The Next Generation UAV

The IdeaForge Netra V4+ is a state-of-the-art UAV engineered for superior performance across diverse applications. With its advanced capabilities and durable design, the Netra V4+ is positioned as a leading solution in the UAV market. This cutting-edge drone offers enhanced flight autonomy, extended endurance, and versatile payload options, making it ideal for surveying, surveillance, and mapping tasks. Its robust technical specifications and innovative features ensure reliable and efficient operation in a variety of demanding environments.

VISIT THIS CATEGORY PAGE TO EXPLORE THE INDIAN DRONES.

Technical IdeaForge Netra Specifications

UAV Weight with Battery and Max Payload: Less than 6 kg

UAV Size with Propeller: Less than 1.5m x 1.5m

Endurance:

60 minutes with Day payload (up to 1000m AMSL Take-Off)

50 minutes using a mapping payload (takeoff up to 1000 meters AMSL)

30 minutes with Day payload at 6000m AMSL Take-Off

Range of Live Transmission (LOS): 5 km (unobstructed & interference-free)

Typical Cruise Speed: 10 m/s

Propulsion: Battery-powered electric propulsion

Maximum Operating Altitude (AGL): 500m AGL

Maximum Launch Altitude (AMSL): 6000m AMSL

Functional Temperature Range: -10°C to +55°C

Dust & Drizzle Resistance: IP53 rating

Aural Signature: Less than 40 dB @ 300 meters AGL

Wind Resistance: Up to 10 m/s (36 km/h or ~20 knots)

Technical Life of UAV (Landings): Minimum 500 landings

Automated Vertical Take-Off as well as Landing (VTOL) Launch as well as Recovery

Maximum Recovery Space Needed: 25 m × 25 m Open Space

Area Coverage for Mapping: Minimum 1.75 sq km at 120 m AGL with 80/60 overlap

Autonomy: Fully autonomous from take-off to landing without R/C controller

Flight Modes: Altitude Hold Hover, Autonomous Waypoint Navigation, Remotely Piloted Mode (RPV Mode), Real-time Target Tracking

Operating Crew: Maximum 2

Deployment Time: Less than 10 minutes

Packaging and Storage: Waterproof backpacks with IP66 rating

Overview

NETRA V4+ UAV is an intelligent and portable VTOL UAV which is built for use in a wide range of mission-critical applications. NETRA V4+ is mostly used for patrolling, anti-smuggling, search and rescue, disaster and emergency analysis and others.

The IdeaForge Netra UAV V4+: Key IdeaForge Netra Features

Payload Options:

Daylight HD (1280x720) with 10x optical zoom

Thermal (320x240 and 640x480) video payloads

Mapping payload with 20 MP photogrammetry

Video Stabilization: Electronic and gimbal stabilization in real-time

Payload Replacement Time: Less than 5 minutes

Payload Control: Pan (360º continuous), Tilt (90º with surveillance payload)

3D Maps: Switchable between 2D/3D map views

GUI Display Parameters: Includes geographic map, UAV location, camera view polygon, waypoints, real-time video, and more

How The IdeaForge Netra UAV V4+ Excels In Different Applications

Surveying: The Netra V4+ shines in surveying with its 20 MP payload, delivering high-accuracy maps and efficient coverage of large areas. Its autonomous flight capabilities and precise altitude control enhance the accuracy of land surveys and infrastructure inspections.

Day and Night Surveillance: Equipped with both daylight HD and thermal imaging options, the Netra V4+ is versatile for all-day surveillance. It offers real-time video transmission and advanced stabilization, ensuring clear, reliable monitoring in any lighting conditions.

Accurate ideaForge Netra Technical Data: For mapping tasks, the Netra V4+ features a high-resolution payload and the ability to cover extensive areas. Its detailed 3D mapping capabilities provide accurate geographical data, making it ideal for environmental monitoring and topographic analysis. Hope you learned a lot about the Netra UAV Capabilities.

Payload

10X HD Optical Zoom

lazy

Thermal Camera with 4X Digital Zoom

lazy

The IdeaForge Netra UAV V4+: Frequently Asked Questions

How does the Netra UAV V4+ handle harsh weather conditions?

The Netra V4+ operates effectively within a temperature range of -10°C to +55°C and is rated IP53 for dust and drizzle resistance. These specifications ensure reliable performance in challenging weather conditions, including extreme temperatures and light precipitation.

What are the key advantages of the Netra UAV V4+?

The Netra V4+ boasts extended endurance, fully autonomous flight capabilities, and versatile payload options. Its robust environmental resilience and high-resolution imaging capabilities make it exceptionally effective for applications such as surveying, surveillance, and mapping. The diverse IdeaForge Netra Applications makes this product worth buying.

How does the Netra UAV V4+ ensure safety and reliability?

The Netra V4+ incorporates multiple failsafe features, including auto-return to home on communication failure, low battery, or exceeding wind limits. Additionally, it has redundant GPS systems, and undergoes comprehensive pre-flight checks to ensure operational safety and reliability.

What is the maximum operational altitude for the Netra UAV V4+?

The Netra V4+ can operate up to 500 meters above ground level (AGL) and can be launched from altitudes as high as 6000 meters above mean sea level (AMSL), providing flexibility for a variety of mission profiles.

How long can the Netra UAV V4+ stay in the air on a single charge? The Netra V4+ offers up to 60 minutes of endurance with a daylight payload at 1000 meters AMSL take-off, and up to 50 minutes with a mapping payload under the same conditions. Endurance decreases to 30 minutes when taking off from 6000 meters AMSL with a daylight payload.

What types of payloads can the Netra UAV V4+ carry?

The Netra V4+ supports a range of payloads including daylight HD cameras with optical zoom, thermal imaging cameras, and a 20 MP photogrammetry payload for high-resolution mapping. Payloads can be easily swapped, with replacement taking less than 5 minutes.

Can the Netra UAV V4+ be used for both day and night operations? Yes, the Netra V4+ is equipped for both day and night operations. It features daylight HD cameras for daytime surveillance and optional thermal imaging cameras for low-light or nighttime monitoring.

What is the range of live video transmission for the Netra UAV V4+?

The Netra V4+ offers a range of up to 5 kilometers for live video transmission, assuming unobstructed and interference-free conditions. This capability supports effective real-time monitoring and data collection during missions.

How is the Netra UAV V4+ deployed and recovered?

The Netra V4+ features autonomous vertical take-off and landing (VTOL), simplifying deployment and recovery. It requires a clear, open area of 25 meters by 25 meters for takeoff and landing. Are you looking for the latest Netra UAV Price? If so, contact our sales staff to ensure you receive the greatest offer

What are the Netra UAV V4+’s capabilities for mapping applications?

The Netra V4+ excels in mapping with its high-resolution 20 MP payload, capable of covering areas efficiently and providing detailed 3D maps. It supports area coverage of at least 1.75 square kilometers at 120 meters AGL with the appropriate overlap for accurate mapping. Hope you learned a lot about the Netra UAV Capabilities.

The IdeaForge Netra UAV V4+: Hurry Up! Buy This Product Now!

The IdeaForge Netra V4+ represents a significant advancement in the UAV market, offering a blend of high-performance features and robust design tailored for a variety of applications. Its impressive technical specifications—including extended endurance, autonomous flight capabilities, and versatile payload options—make it a versatile tool for surveying, surveillance, and mapping tasks. With the ability to operate in diverse environmental conditions and handle up to 500 meters AGL with a range of up to 5 kilometers for live video transmission, the Netra V4+ stands out for its reliability and adaptability. Are you looking for the latest Netra Drone Price? If so, contact our sales staff to get the best rate.

Whether used for high-accuracy land surveys, comprehensive environmental monitoring, or real-time surveillance, the Netra Drone Performance ensures precise data collection. Its user-friendly design, including quick payload swaps and autonomous VTOL capabilities, enhances operational efficiency and ease of use. Additionally, the drone’s durability in harsh weather conditions and safety features underscore its readiness for demanding missions. The IdeaForge Netra V4+ is a cutting-edge UAV that excels in both functionality and reliability, making it an ideal choice for professionals seeking advanced aerial solutions in a range of challenging environments. Are you looking for the latest Netra Drone Price? If so, contact our sales staff to get the best rate.
