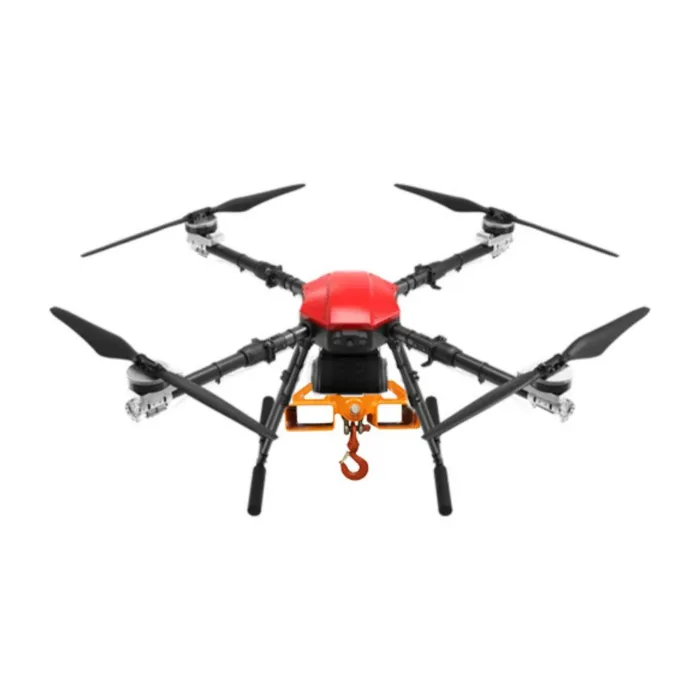

Payload Dropping Drone- 16Kg
₹708,000.00
This Payload dropping drone come in 16 Kg capacities, each designed with specific technical specifications to match diverse operational needs. Featuring precision drop mechanisms, high-load endurance, advanced GPS navigation, and robust flight stability, these drones ensure efficient and accurate deliveries every time.
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deals with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
UAS Details
|
Category/sub-Category |
Rotor Craft/RPAS |
|---|---|
|
Class |
Medium |
|
Payload Capacity in kg |
16Kg |
|
Overall dimensions (1 x b x h) in mm |
1844 x 1844 x 628mm (unfold) |
AIRCRAFT DETAILS
|
Engine details (Manufacturer details, Model No.) |
Hobbywing |
|
Engine/Motor |
X9 Plus |
|
Power Rating |
900 Watts |
|
No. of Engines/ Motors |
4 |
|
Total fuel capacity (kg)/ Battery Capacity (mAh) |
16L/22000 mAh |
|
Propeller details |
Diameter- 34 inches, Pitch-11 inches, Maximum RPM-5500 |
EQUIPMENT DETAILS
|
GNSS |
Available |
| Autonomous Flight Termination System or Return Home (RH) | Available |
| Geo-fencing Capability | Available |
REMOTE PILOT STATION
|
Ground Control Station Model No. |
Windows OS/ Mobile - Android Platfrom |
|
GCS App. Version |
Jiyi Agri assistant |
REMOTE SPECIFICATION
|
Item Type |
Transmitter |
|
Channel |
12 |
|
Frequency |
2.4 |
|
Working voltage |
3.7V |
|
Modulation Type |
FHSS |
|
Working Current (mA) |
130mA |
|
Battery Capacity(C) |
4000mAh |
|
Charging Port |
MICRO-USB |
|
Weight (g): |
560g |
|
Dimensions (L x W x H) |
23*16*7 mm |
|
Shipping Weight |
1.072 kg |
|
Shipping Dimensions |
24 × 19 × 10 cm |
INTERNAL DETAILS
|
Flight Controller |
Jiyi k++ |
|
GPS |
Jiyi GPS |
|
Motor |
X9 Plus |
|
Propeller |
34 Inch |
|
Battery |
22000 mAh |
|
Wheel base |
1844 mm |
|
ECS |
Hobbywing |
PERFORMANCE DETAILS
|
Maximum Endurance (hr/m ) |
10-12 mins with full payload |
|
Maximum Range (in km) |
2-3 km |
|
Maximum Speed (in m/s) |
40 m/s |
|
Maximum Height |
100 meter |
|
Operating Altitude (in ft) |
49.21 |
|
Spray Distance |
4~5m |
| Water Pump system | 5 L/min |
|
Operating Voltage |
50.4V |
| Spraying system | Spray nozzle |
| Remote Control | T12 |
