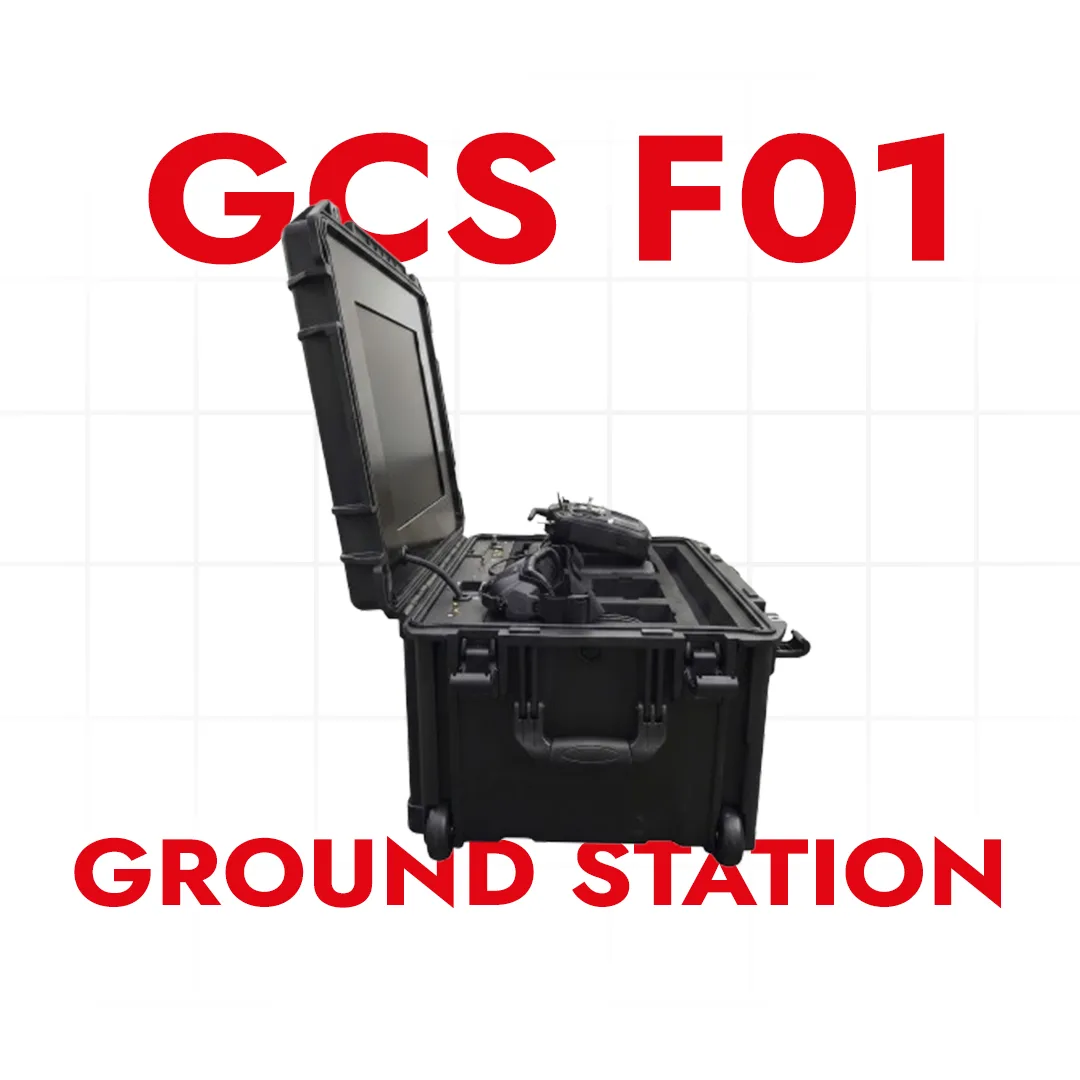

GCS F01 Integrated Ground Station for FPV Drone

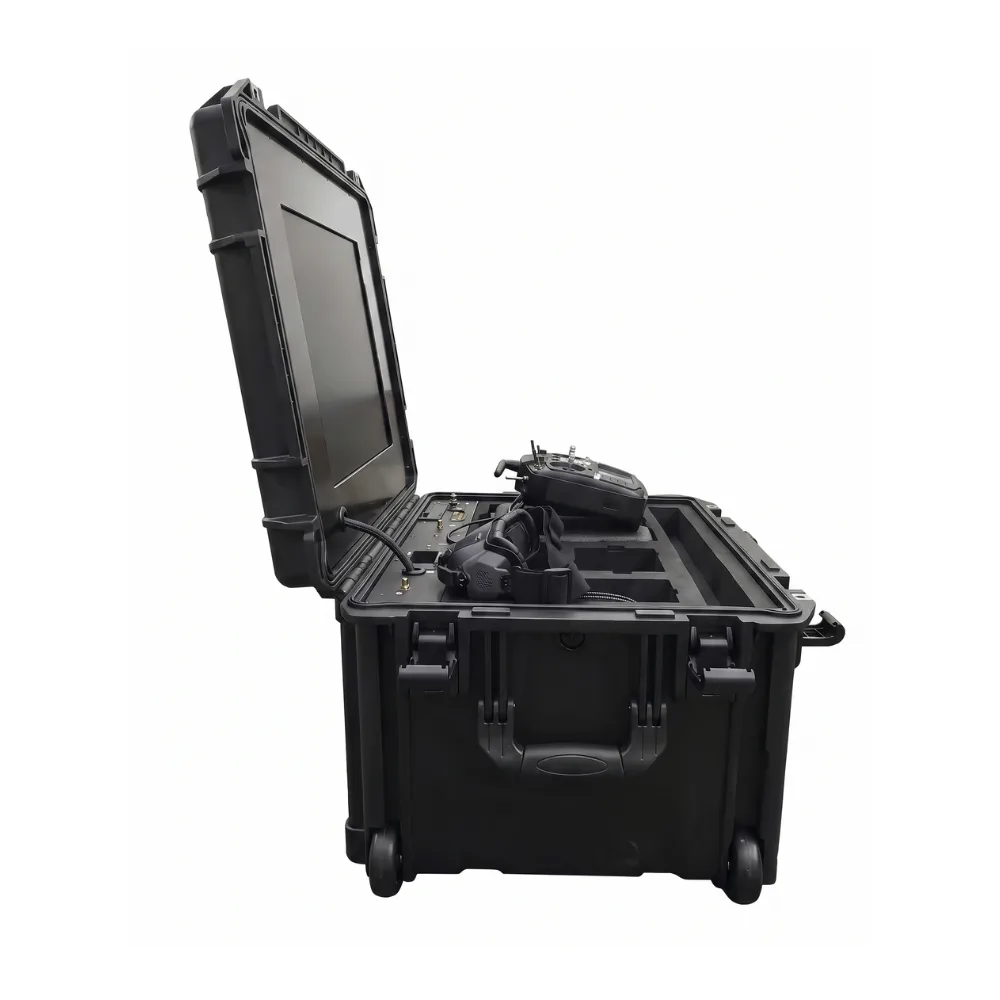

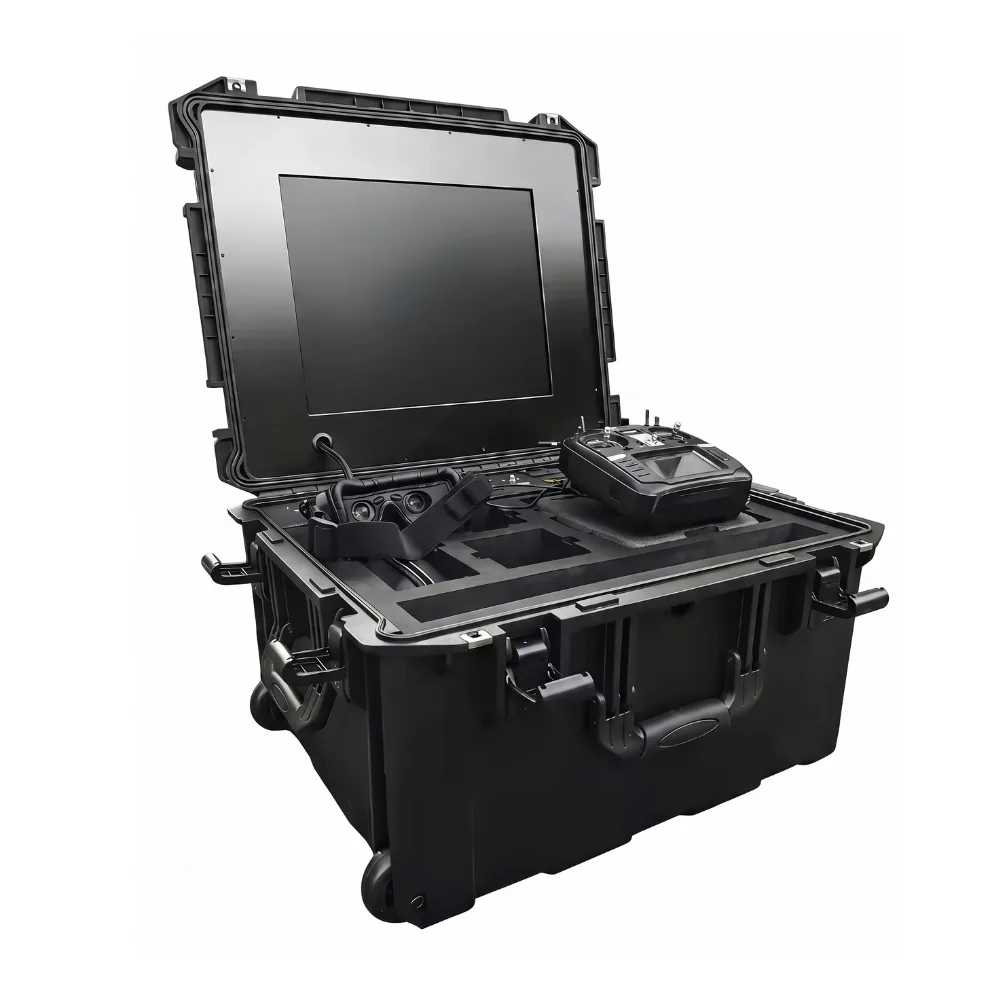

GCS-F01 is a compact, portable ground control station with integrated FPV accessories and a built-in display. It also conveniently stores the remote controller, FPV goggles, cables and batteries during transport. For operation, the goggles’ live video feed can be shown on a 15-inch high-brightness screen for easy mission monitoring by multiple users. The system also has emergency battery charging capability for added support during critical flight operations.
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
INTRODUCTION
FEATURES
- 15.6" high light display
- Carbon fiber panel
- Highly customized
- Support display projection
- Support antenna extension
- Industrial power management system
- It can charge the remote control and VR glasses externally
- It can transport VR glasses, remote controls, batteries, etc
TECHNICAL PARAMETER
| Item | Specification | Description |
|---|---|---|
| Chassis Model | Three-proof Safety Case | NA |
| Closed Dimensions | 629mm*497mm*353mm | Excluding Packaging |
| Protection Grade | IP67 | NA |
| Operating Temperature | -10℃ to 60℃ | NA |
| Color Type | Matte Black | Default Specification, Optional |
| Portable Features | Ready to use (open), three proof transport (closed), external handle | NA |
| Battery & Endurance | IBMS, 2-hour endurance | Default Specification, Customizable |
| Panel Material | 3K Carbon Fiber Sheet+ | NA |
| Interfaces | VGA×1, Headphone×1, TX60/90 | Default Specification, Optional |
| Feeder & Antenna Interface | ANT×2 | NA |
| Human - Machine Interaction | 15.6-inch High-Brightness Screen | NA |
| Other Devices | Communication Device Indicator, Power Meter, Cooling Fan | Default Specification, Optional |
| Size | 17.3 Inches | NA |
| Resolution | 1920*1080 | NA |
| Screen Ratio | 16:09 | NA |
| Maximum Brightness | 1040nit | Automatic Brightness Adjustment |
| Input Interface | HDMI | Default Connection to Industrial Control Host |
| Power Supply | 12V | NA |
| Antenna | TNC+2 | Reserved TNC Installation Position |
| Display Content | Current Voltage, Current, Remaining Capacity, Power, etc | NA |
| Charging Method | DC Input 19V - 24V | Optional Aviation Plug Dual-core Interface |
| Endurance Time | 2 Hours | NA |
