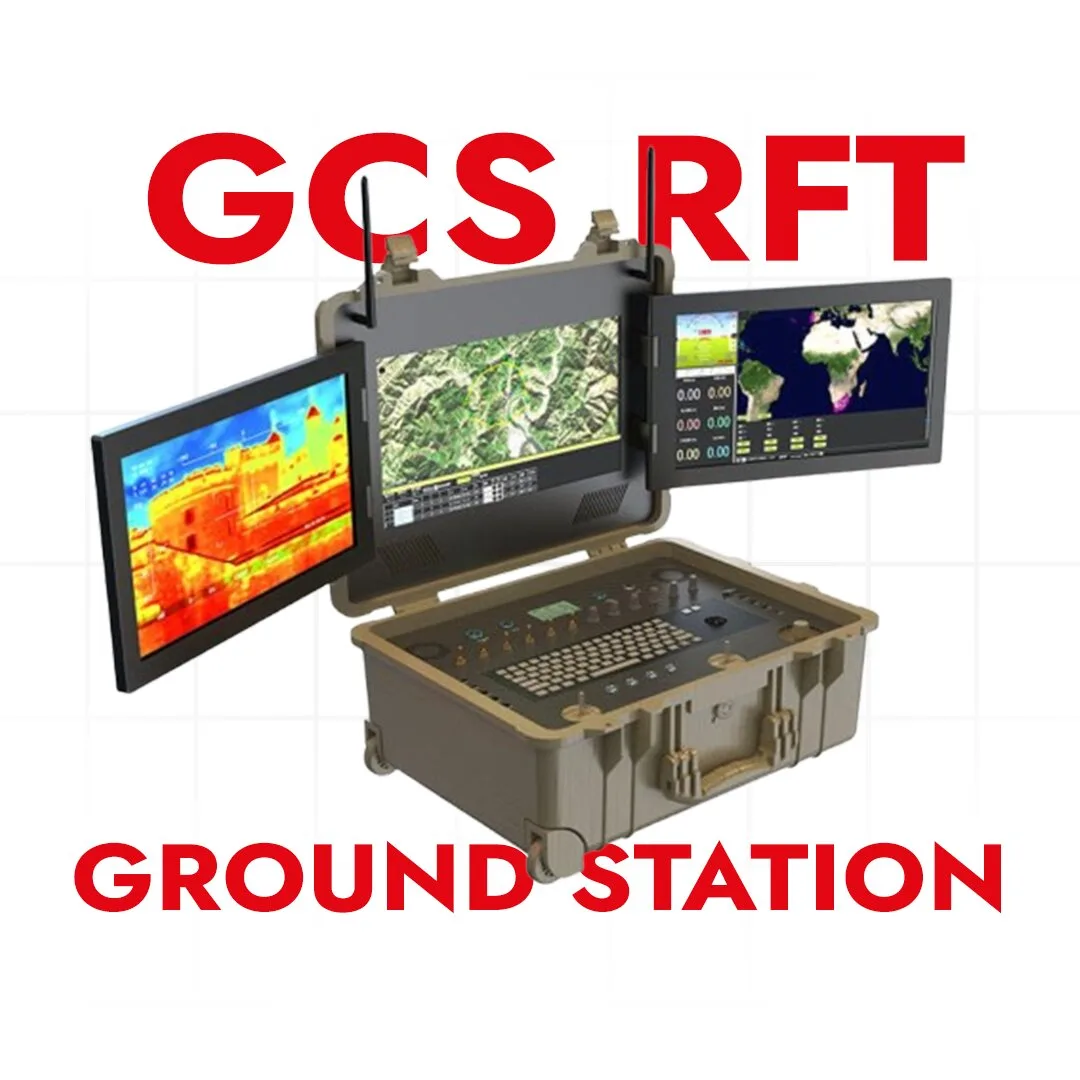

GCS RFT Three-Screen Ground Control Station for Drone
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
INTRODUCTION

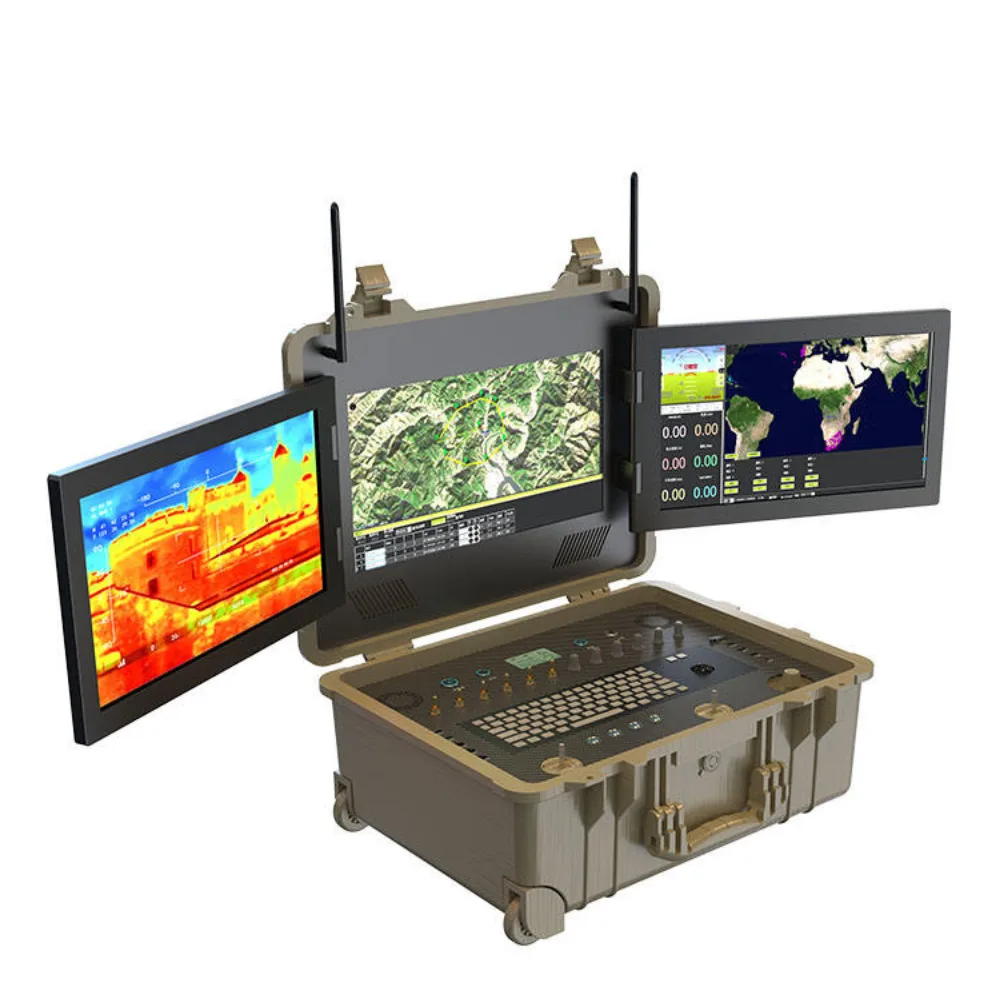

The GCS - RFT three - screen ground station consists of an industrial - grade computer and a high - definition video and data transmission module. The device is capable of flight control, screen viewing and mission planning through three 15.6 inch screens. It can show flight data and image information status, has picture-in-picture display and recording function. It is equipped with a variety of interfaces such as RS232, HDMI, USB and RJ45. Moreover, it is simple to operate and easy to transport.
The multi - screen collaboration is convenient for the task preview in actual use . It can pay attention to all aspects of the task in real time and improve the operational efficiency .
FEATURES

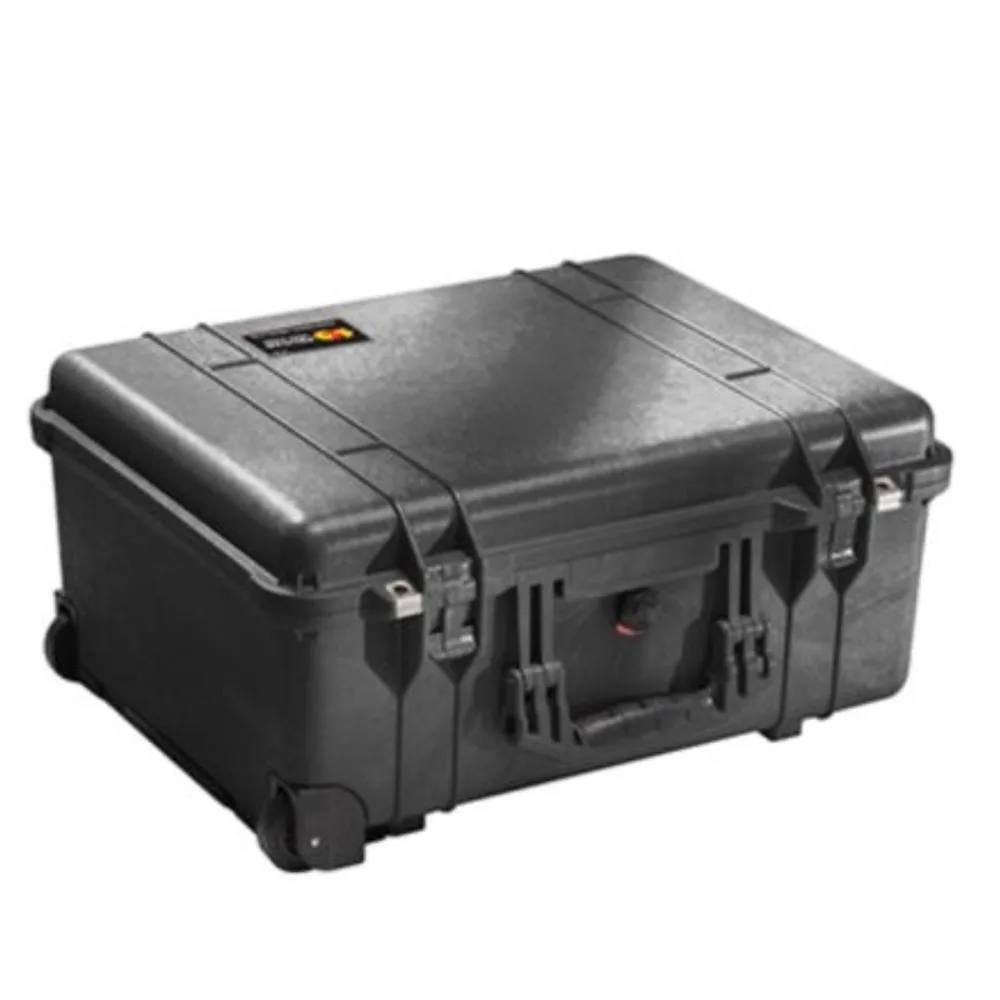

- Box - type three - proof shell, dust - proof, waterproof, and shock - proof.
- 15.6 - inch×3 three - screen display.
- High - brightness display with a peak brightness of 1040 nits.
- Two - axis joystick.
- The panel has rich expansion interfaces.
- Reserved data link installation position.
- Highly integrated.
- Customizable.
- Industrial - grade power management system.
- Carbon fiber panel.
TECHNICAL PARAMETER
| Item | Specification | Description |
|---|---|---|
| Size | 385 × 285 × 88 mm | Excluding packaging |
| Weight | 8.5 kg | Excluding packaging |
| Color | Black - Gray | NA |
| Motherboard | H310C | Default specification, optional |
| CPU | i9 9980H | Default specification, optional |
| Memory | 16 GB DDR4 | Default specification, optional |
| Solid State Drive | 1 TB SSD | Default specification, optional |
| Graphics Card | GTX1650 4G, RTX3050 8G | Selectable |
| Control Devices | Two-axis rocker | NA |
| Operating Temperature | -10°C ~ 40°C | NA |
| Screen Brightness | Peak 1040 nits | NA |
| Panel Interfaces | USB / HDMI / RS232 / RJ45 | Default specification, optional |
| Wireless | WiFi / 4G templates | NA |
| Mouse Key | Backlit mechanical mouse | Optional |
| Battery Capacity | 13.4 Ah | Can be powered by an external power supply |
| Battery Life | 3 h | NA |
| Operating System | Windows 10 | Can be installed with Linux or others |
| Physical Channels | 10 buttons, 12 knobs | User-defined |
| Unlock | Fingerprint to unlock | NA |
| Protocol Support | SBUS / USB | Can be customized |
