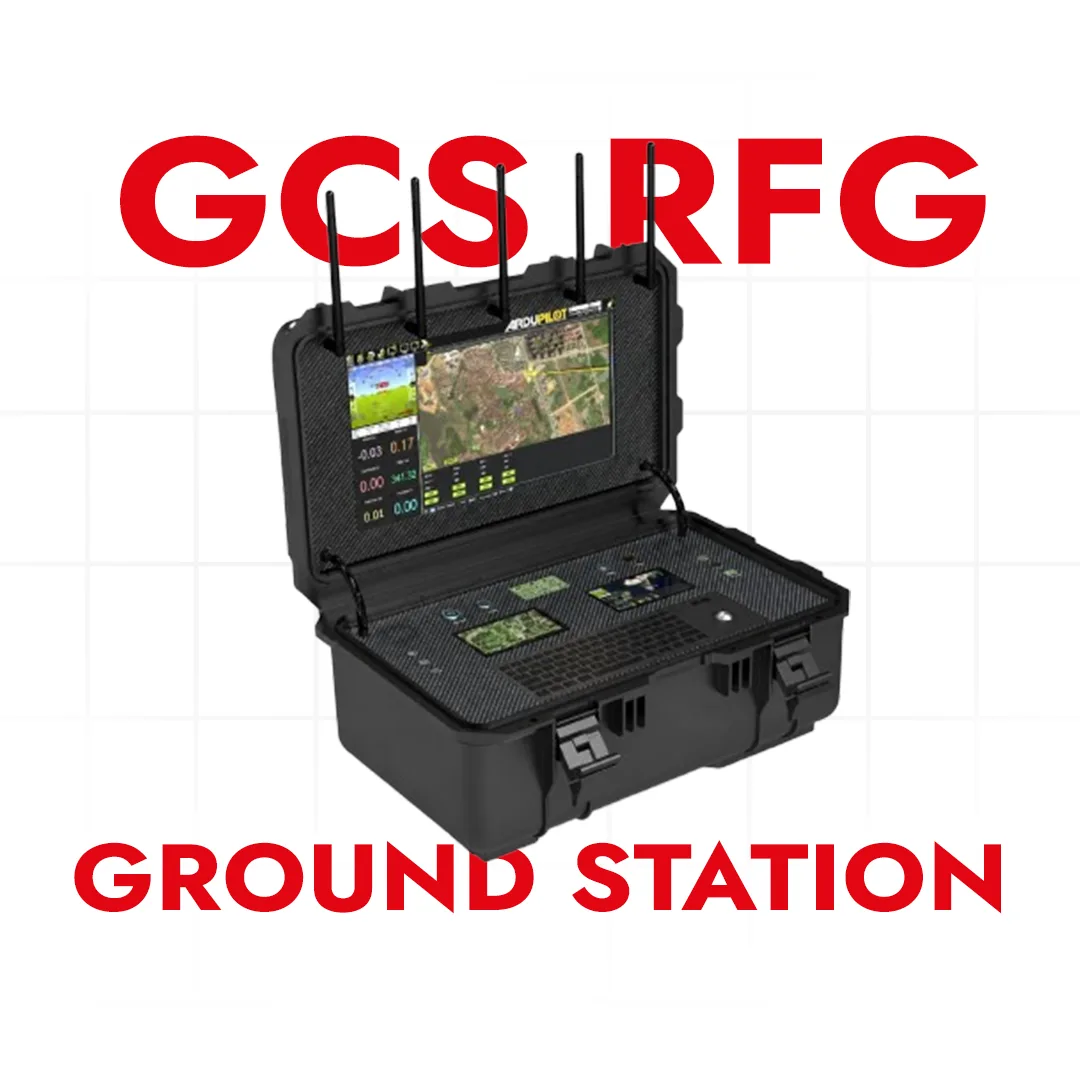

GCS RFG Control Terminal Ground Station for Drone
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
INTRODUCTION

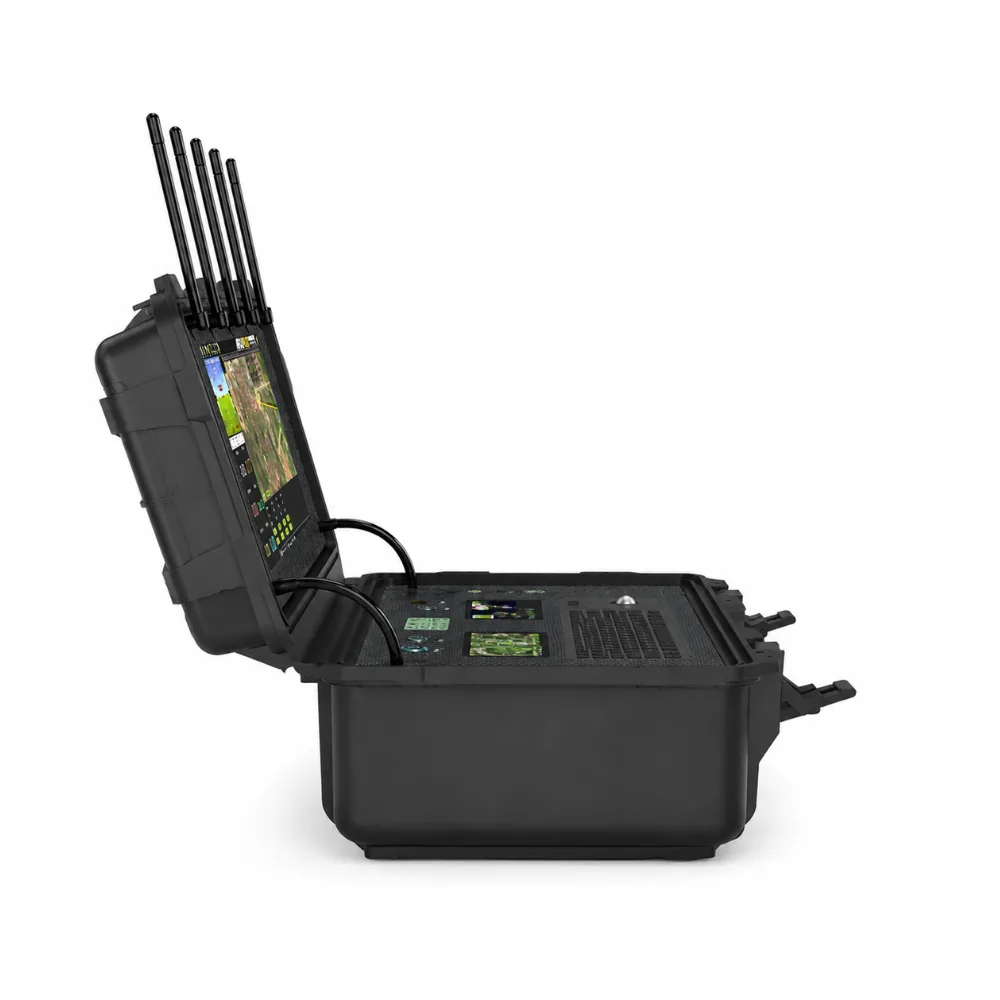

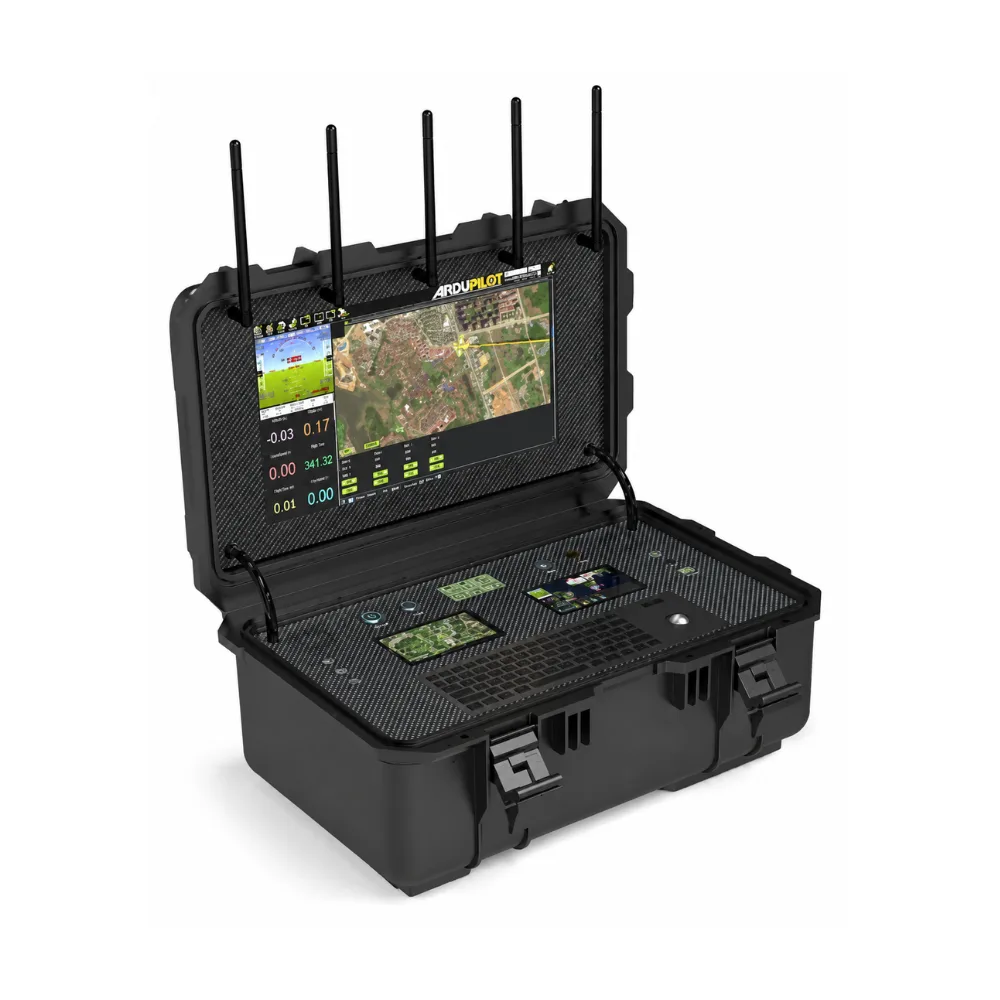

The GCS-RFG Ground Control Station is an integrated platform that houses an industrial-grade computer and dual H12 remote controllers. In flight operations, the industrial computer provides real-time mission data, telemetry and aircraft status monitoring, providing efficient command and control. The system has an integrated Wi-Fi communication module and supports a wide range of connectivity options including RS232, HDMI, USB and RJ45 interfaces, allowing easy integration with many external devices and payloads. Its compact design makes it portable and easy to use in the field.
Practically speaking, the multi-screen collaborative set-up enhances mission planning and execution by enabling operators to monitor multiple streams of data simultaneously. This real-time situational awareness leads to better decision-making, more efficient workflow and greatly improves operational efficiency overall.
FEATURES
- Box - type three - proof shell, dust - proof, waterproof, and shock - proof.
- 17.3 - inch and 5 - inch×2 three - screen display.
- High - brightness display with a peak brightness of 1040 nits.
- WIFI communication.
- The panel has rich expansion interfaces.
- Reserved data link installation position.
- Highly integrated.
- Customizable.
- Industrial - grade power management system.
- Carbon fiber panel.
TECHNICAL PARAMETER
| Item | Specification | Description |
|---|---|---|
| Size | 415 × 355 × 180 mm | Excluding packaging |
| Weight | 8.5 kg | Excluding packaging |
| Color | Black - Gray | NA |
| Motherboard | H310C | Default specification, optional |
| CPU | i7 7700T | Default specification, optional |
| Memory | 16 GB DDR4 | Default specification, optional |
| Solid State Drive | 256 GB SSD | Default specification, optional |
| Screen | 5-inch × 2, 17.3-inch | NA |
| Control Devices | Lever, Potentiometer | NA |
| Operating Temperature | -10°C ~ 40°C | NA |
| Screen Brightness | Peak 1040 nits | NA |
| Panel Interfaces | USB / HDMI / RS232 / RJ45 | Default specification, optional |
| Wireless | WiFi / 4G templates | NA |
| Mouse Key | Metal mouse and keyboard (integrated) | Optional |
| Battery Capacity | 13.4 Ah | Can be powered by an external power supply |
| Battery Life | 3 h | NA |
| Operating System | Windows 10 | Can be installed with Linux or others |
| Physical Channels | 4 buttons, 4 potentiometers | User-defined |
| Antenna Interface | SMA × 5 | NA |
| Protocol Support | Remote Controller | Can be customized |
