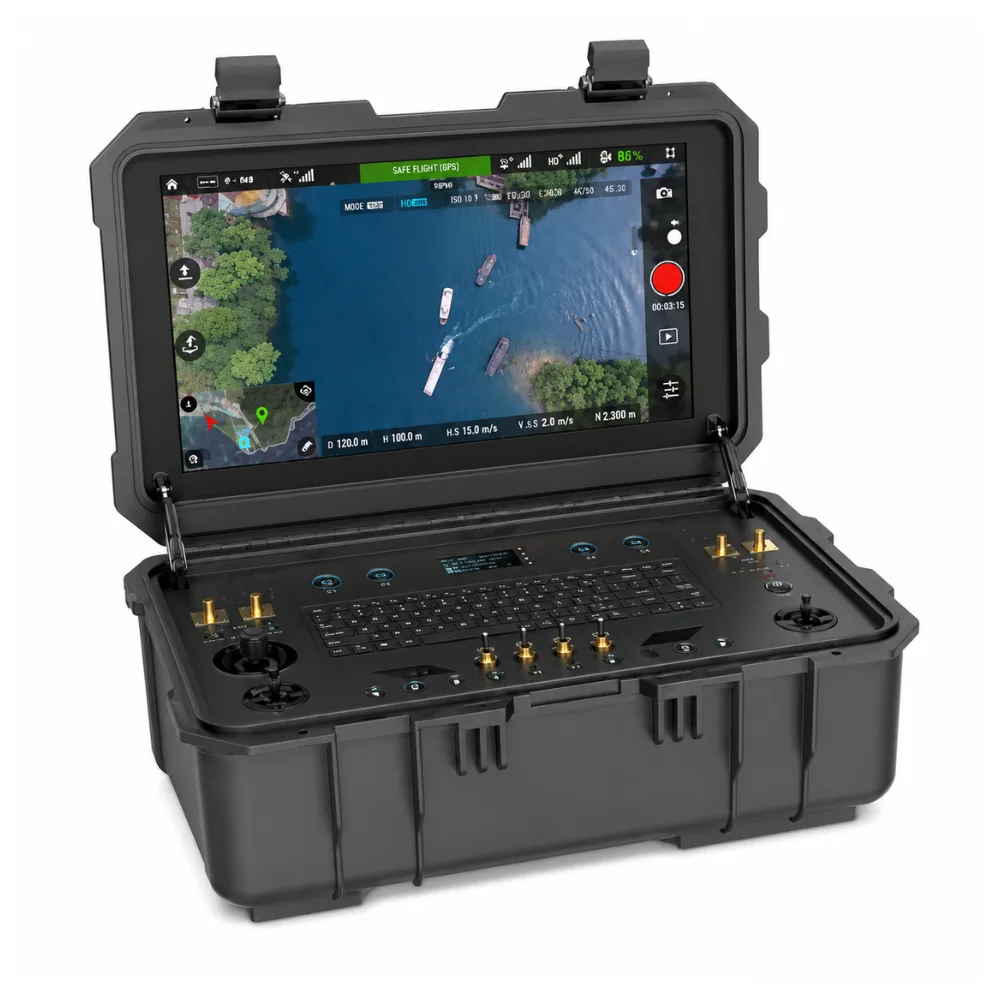

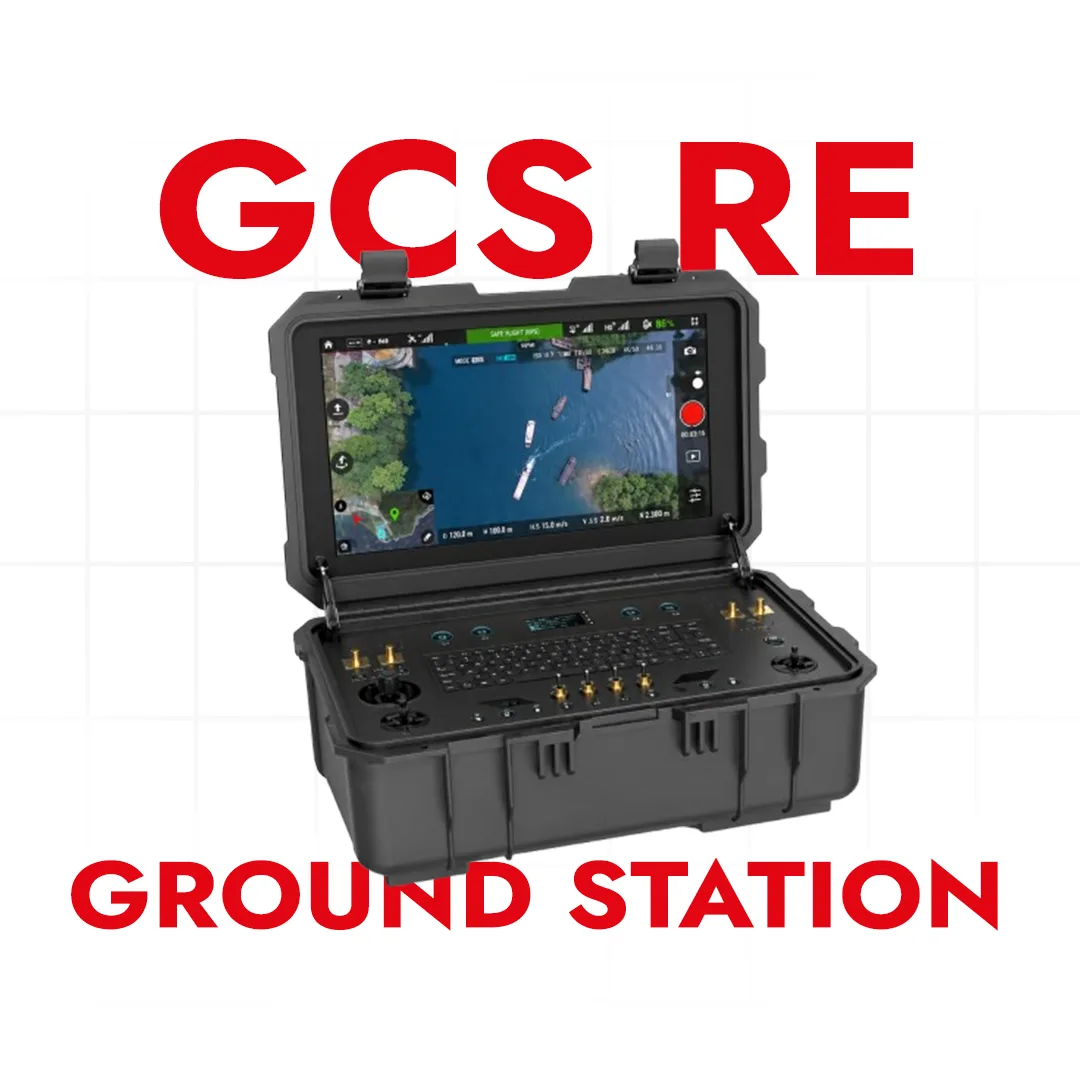

GCS RE Dual Channel Ground Control Station for Drone
- 7 Days Return, Exchange & Refund Policy.
- Free Delivery within 3 to 5 Days.
- Assured Product Quality. We deal with only Genuine Products.
- Peace of mind Warranty. Check Our Warranty Policy.
- Contact Us for Any Assistance.
Guaranteed Safe Checkout
INTRODUCTION
FEATURES
- Box - type three - proof shell (dust - proof, waterproof, shock - proof)
- 17.3 - inch screen display
- High - brightness display with a peak brightness of 1040 nits
- Two - axis flight control stick, gimbal Hall - effect control stick
- The panel has rich expansion interfaces
- Reserved data link installation position
- Highly integrated
- Customizable
- Industrial - grade power management system
- Carbon fiber panel
TECHNICAL PARAMETERS
| Item | Specification | Description |
|---|---|---|
| Size | 415 × 355 × 180 mm | Excluding Packaging |
| Weight | 7 kg | Excluding Packaging |
| Color | Black, Military Green, Desert Color, etc. | NA |
| Motherboard | H310C | Default Specification, Optional |
| CPU | i7 7700T | Default Specification, Optional |
| Memory | 16GB 3200MHz | Default Specification, Optional |
| Solid State Drive | 256GB SSD | Default Specification, Optional |
| Control Devices | Two-axis Joystick, Hall-effect Joystick | NA |
| Operating Temperature | -10°C ~ 40°C | NA |
| Screen Brightness | Peak 1040 nits | NA |
| Panel Interfaces | USB, HDMI, RS232, RJ45 | Default Specification, Optional |
| Buttons | Industrial Metal Buttons | NA |
| Mouse and Keyboard | Metal Mouse and Keyboard (Integrated) | NA |
| Battery Capacity | 27 Ah | Can Be Powered by an External Power Supply |
| Battery Life | 4 Hours | NA |
| Operating System | Windows 10 | Can Be Installed with Linux or Others |
| Physical Channels | 8 Buttons, 4 Levers, etc. | User-Defined |
| Charging Interface | DC Interface | Can Choose an Aviation Plug Two-Core Interface |
| Antenna Interfaces | Reserved 2 SMA Interfaces | Can Choose TNC Interfaces |
| Protocol Support | SBUS, USB | Can Be Customized |
