What Is A Ground Control Point (GCP)?

In the world of aerial mapping, where drones buzz through the sky capturing breathtaking terrain visuals and massive datasets, there’s a hidden hero on the ground— Ground Control Points (GCPs). These humble markers don’t fly, but they control the accuracy of what does.

Whether you’re a land surveyor, a GIS analyst, or a drone pilot aiming for centimeter-level precision, understanding GCPs is foundational. Let’s unpack the concept and significance of ground control points in the context of modern geospatial workflows.

---

📍 Definition: What is a Ground Control Point?

A Ground Control Point (GCP) is a precisely marked location on the earth’s surface with known geographic coordinates (latitude, longitude, and elevation). These points are physically visible on the ground and appear clearly in aerial imagery, enabling mapping software to tie the images to real-world locations with high accuracy.

Think of GCPs as anchor pins— holding the digital map firmly to the real Earth.

---

🔍 Why Are GCPs So Important?

Modern mapping techniques like photogrammetry and LiDAR depend heavily on spatial alignment. Drone-captured images often suffer from minor errors due to lens distortion, altitude variance, or satellite drift. GCPs act as the ground truth— a benchmark against which all data is aligned.

Here’s what they do:

• 🧭 Improve Georeferencing: Align aerial images with real-world coordinates.

• 🎯 Enhance Accuracy: Achieve sub-centimeter to centimeter-level precision in 2D and 3D outputs.

• 🧱 Enable Legal & Technical Validity: Ensure mapping outputs meet regulatory or engineering standards.

• 🧪 Validate RTK/PPK Results: Act as checkpoints for drone-based GNSS accuracy systems.


In short, without GCPs, your map might look good—but it won’t be reliable.

---

🛠️ How Are GCPs Created and Used?

Step 1: Planning

Surveyors strategically choose GCP locations—ideally spread evenly across the survey area, including edges and corners for better model stitching.

Step 2: Placement

GCPs are marked using high-contrast symbols (e.g., checkerboards, crosses) made from plastic, paint, or even temporary chalk. These need to be visible in aerial imagery.

Step 3: Coordinate Measurement

Each GCP’s coordinates are recorded using survey-grade GNSS equipment, total stations, or RTK-enabled rovers.

Step 4: Data Integration

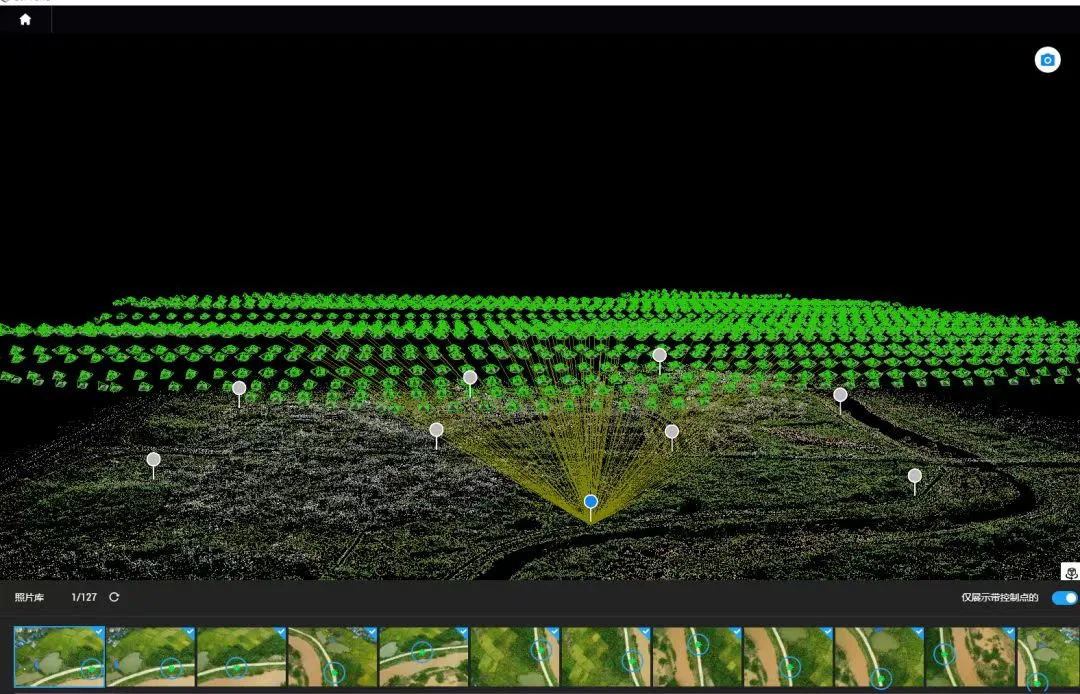

Once drone imagery is collected, the GCPs are manually identified in the processing software. The software then warps and aligns the entire image set based on these fixed points.

---

📊 Where Are GCPs Used?

GCPs are critical in a wide range of industries:

Industry	Purpose
Land Surveying	Boundary marking, cadastral maps
Construction & Infra	Site planning, as-built verification
Agriculture	Precision farming, yield mapping
Mining & Quarrying	Volume estimation, terrain modeling
Environmental Science	Erosion tracking, flood modeling
Urban Planning	3D city models, zoning maps

Wherever accuracy is non-negotiable, GCPs are involved.

---

🔁 GCPs vs. Check Points: A Common Confusion

• GCPs: Used during processing to correct and align imagery.

• Check Points: These are used after processing to evaluate the accuracy of the output.


Both were surveyed, but only GCPs influenced the mapping result. Checkpoints are the unbiased judges in your geospatial courtroom.

---

🌐 Can Drones Replace GCPs?

With the rise of RTK (Real-Time Kinematic) and PPK (Post-Processed Kinematic) drones, many ask: “Do I still need GCPs?”

Answer: It depends.

Scenario	Need for GCPs
Small site with RTK drone	Optional
Large terrain or hilly areas	Recommended
Legal or engineering-grade deliverables	Mandatory
Highly regulated survey work	Mandatory

While RTK/PPK improves onboard GPS precision, GCPs remain the gold standard for mission-critical projects.

---

📌 Pro Tips for Effective GCP Use

1. Use a minimum of 5–7 GCPs for small-to-medium areas. More for complex terrains.

2. Distribute GCPs evenly—not just in the center.

3. Ensure visibility in imagery—no tree cover, snow, or shadows.

4. Document everything—including GCP photos and notes for future validation.

5. Test accuracy using additional checkpoints.


---

🔎 Frequently Searched Questions About Ground Control Points

---

✨ Final Thought

In the high-tech age of automated mapping and AI-driven data processing, Ground Control Points remain beautifully analog yet undeniably essential. They remind us that even in a digital-first world, accuracy starts on the ground.

If your map needs to not just look real but be real, GCPs are the anchor you can trust.
